  1. Getting Started

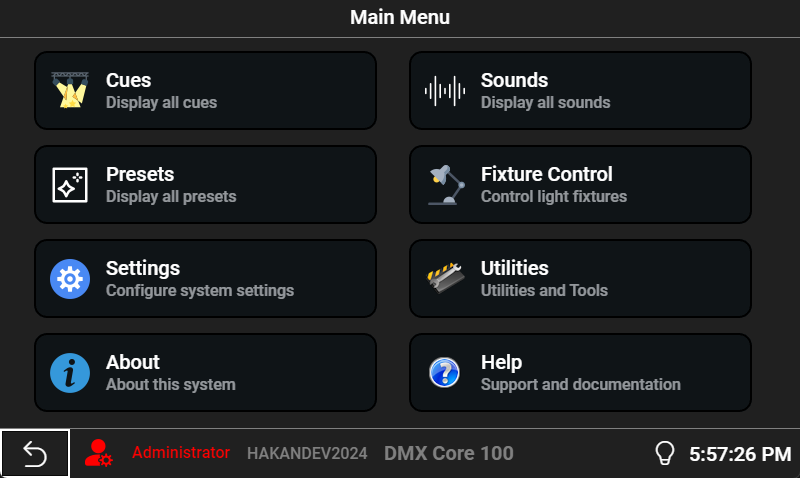

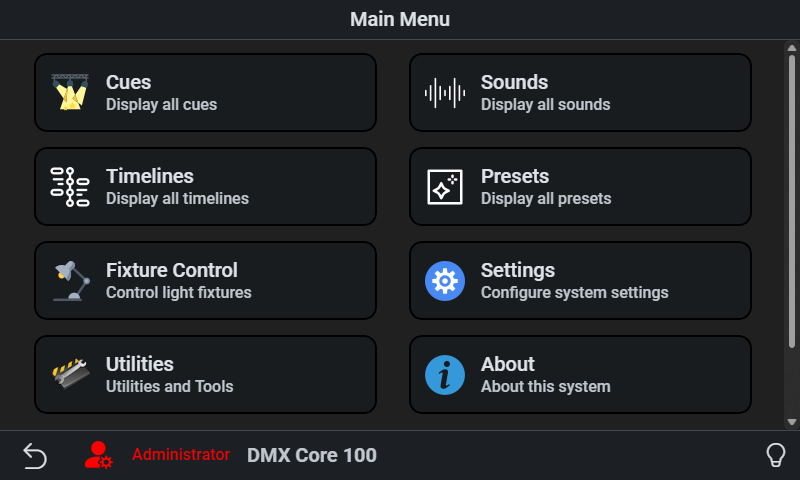

Main Menu

PreviousHome ScreenNextLighting

Last updated 1 year ago


Patterns

Output built-in patterns to test the output configuration without having to create presets/cues.

Cues

Play back stored cues (shows).

Presets

Static output of captured snapshots of DMX data.

Settings

Change host and output configuration settings like time zone, output protocol and more.

Output Config

Configure output settings like universe id, count and type of output.

Schedules

Set up recurring schedules for when different outputs should be activated.

Utilities

Tools like recording snapshots and cues.

About

Display system information.
